바이오 액체 분석 시스템
Bio Liquid Analysis System
| GBTP No. | GBREMS-20-0112 |
|---|---|
| NFEC등록번호 | NFEC-2016-11-212966 |
| I-tube등록번호 | - |
| 보유기관 | 포항공과대학교 산학협력단 |
| 연락처 | 054-279-3658 |
장비정보

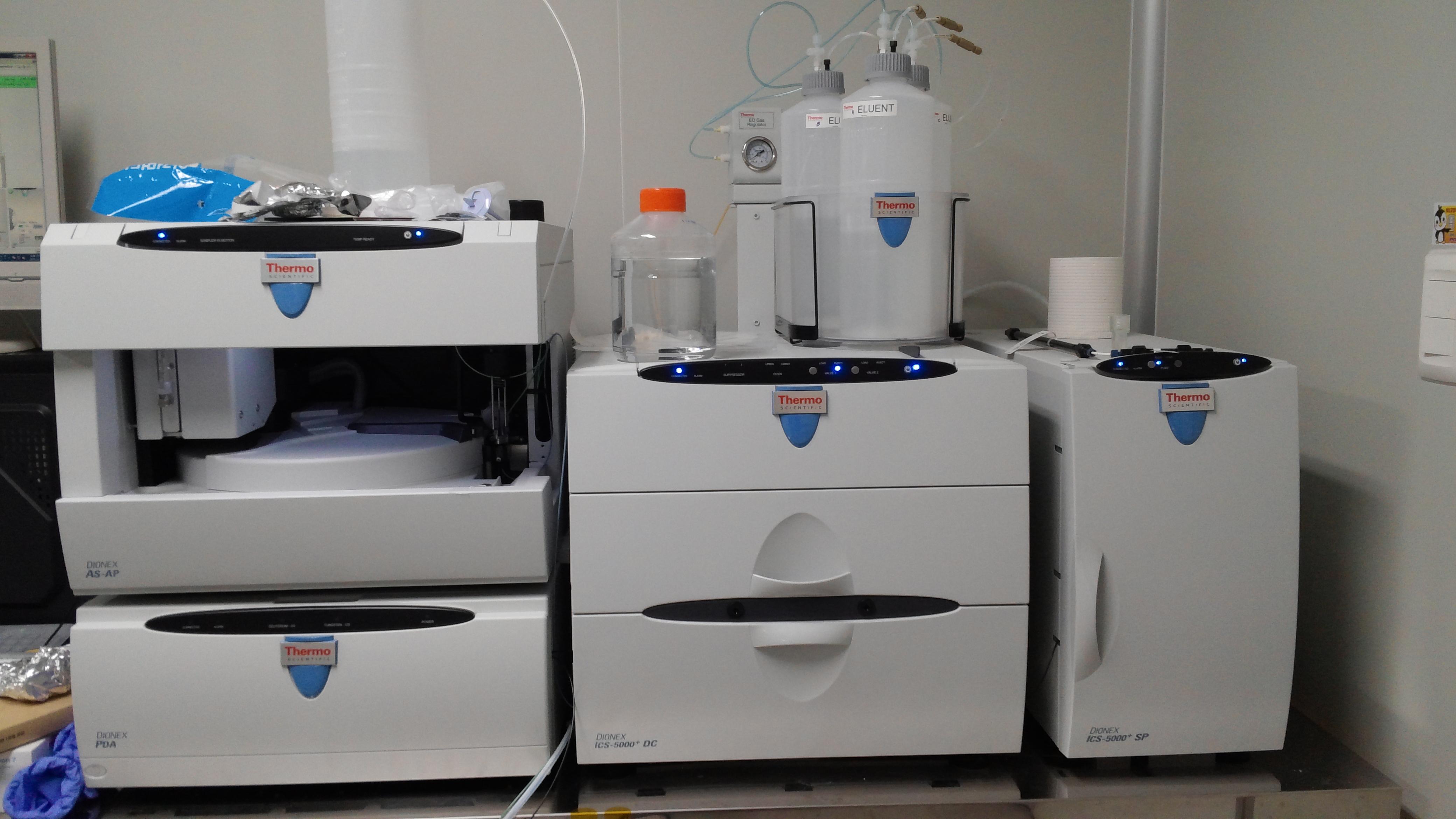

| 모델명 | Dionex ICS-5000 | 제작사 | Thermo Fisher Scientific |
|---|---|---|---|
| 취득일자 | 2016-11-07 | 취득금액 | 92,085,660원 |
| 표준분류 | 화합물전처리/분석장비 > 분리분석장비 > 이온크로마토그래피 | 활용용도 | 시험 |
| 장비위치 |
경상북도 포항시 남구 청암로 77 환경공학동 331호 포항공과대학교 환경공학동 F3 331호
 |
||
| 장비설명 | The ICS-5000 system is the next generation of high-end ion chromatography systems, offering the ability to use 4 mm, 2 mm, or the newly announced 0.4 mm diameter column sets. With the new capillary IC Cube, Dionex has redefined ease-of-use by color-coding fittings and reducing the number of connections in the system; all with an array of detectors and options that add up to a very flexible system. Finally, the reduced eluent flow rate reduces eluent consumption and produces less waste, making the ICS-5000 system a green technology. | ||
| 구성 및 기능 |
1. Dionex AS Autosampler (AS)
-Sample Capacity : 10 mL vials: 81, 1.5 mL vials: 120, 0.3 mL vials: 120, Well Plates: 288 (3 × 96 standard or deep well), Well Plates: 1152 (3 × 384 standard well) -Minimum Sample Volume : 10 μL can be sampled from a 300 μL microvial; 20 μL can be sampled from a 500 μL microvial -Maximum Injection Volume : 7500 μL -Variable Volume Range : 1 100 μL in 0.1 μL increments; 100 7500 μL in 1 μL increments -Injection Cycle Time (including sample prep such as dilution) : 15 s with sample overlap function; 30 s for a 5 μL full loop without sample overlap 2. Dionex ICS-5000 Single Pump (SP) -Construction : Chemically inert, metal-free PEEK pump heads and flow path; compatible with aqueous eluents from pH 0 14 and reversed-phase solvents -Pressure Range : Analytical: 0 35 MPa (0 5000 psi) / Capillary: 0 41 MPa (0 6000 psi) -Flow Rate Precision (Analytical and Capillary) : < 0.1% -Flow Rate Accuracy : < 0.1% -Pressure Ripple : < 1% at 1.0 mL/min/typical, < 0.2% (with damper) at 10 μL/ |
||
| 사용/활용예 |
아미노산, 단백질, 당 등의 생화학 물질을 정성, 정량 분석에 사용합니다.
Electrochemical Detector (ED)로 극미량 시료의 분석이 가능하며, PDA검출기로 일반 유기화합물의 정성 및 정량에 사용합니다. |
||
| 이용안내 | |||
| 유의사항 | |||
이용료안내
| 담당자에게 문의하시기 바랍니다. |
|---|
