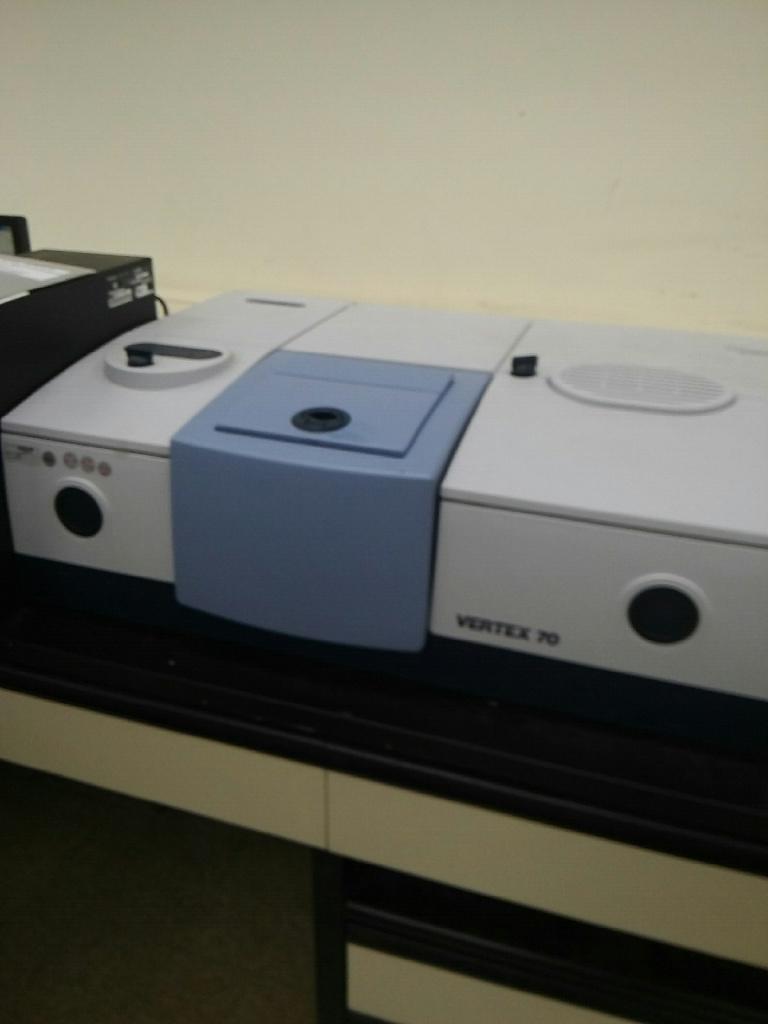

푸리에변환 적외선 분광계
FT-IR Spectrometer
| GBTP No. | - |
|---|---|
| NFEC등록번호 | NFEC-2007-11-047983 |
| I-tube등록번호 | - |
| 보유기관 | 포항공과대학교 |
| 연락처 | 054-279-8155 |
| 대표번호 | - |
장비정보
| 모델명 | Vertex 70 | 제작사 | Bruker |
|---|---|---|---|
| 취득일자 | 2007-05-18 | 취득금액 | 49,500,000원 |
| 표준분류 | 화합물전처리/분석장비 > 분광분석장비 > 푸리에변환적외선분광기 | 활용용도 | 시험 |
| 장비위치 |
경상북도 포항시 남구 청암로 77 (지곡동) 산27 포항공과대학교 화학관 F3 314
 |
||
| 장비설명 |
특징
VERTEX Series FT-IR Spectrometers When we set the bar for research FT-IR spectrometers, we knew that someday we would feel obliged to raise it. The new VERTEX Series is the culmination of everything Bruker Optics has pioneered and developed in over 30 years. The VERTEX Series is built on a fully upgradeable optics platform that is designed with the utmost flexibility in mind. VERTEX spectrometers share a wide range of features, including the Bruker Artificial Intelligence Network (BRAIN), Automatic Component Recognition (ACR), the Plug & Play Ethernet connection and Automatic Accessory Recognition (AAR). |
||
| 구성 및 기능 |
구성및성능
VERTEX 70/70v FT-IR spectrometers VERTEX 70 series offer unmatched performance and versatility for demanding analytical and research applications. Its innovative design results in the highest flexibility and highest performance. The data acquisition is based on two channel deltasigma ADCs with 24-bit dynamic range, which are running in parallel and integrated into the detector preamplifier electronics. This advanced DigiTect technology prevents external signal disturbance and guarantees the highest signal-to-noise ratio. Wide Spectral Range The VERTEX 70 and the 70v can optionally be equipped with optical components to cover the spectral range from 15cm-1 (10cm-1 for VERTEX 70v) in the far IR/THz, through the mid and near IR up to the visible/UV spectral range at 28,000cm-1. With its pre-aligned optical components and permanently aligned RockSolid interferometer, range change is easy and maintenance free. Vacuum Optics With the evacuable optics bench of the VERTEX 70v vacuum FT-IR spectrometer, PEAK sensitivity in the mid-, near and far IR/THz regions are obtained without the fear of masking very weak spectral features caused by water vapor or CO2 absorptions. Outstanding results, e.g. in the area of nano-science research down to sub-monolayers, can be obtained. BRAIN: Bruker Artificial Intelligence Network A network of intelligent functions |
||
| 사용/활용예 | |||
| 이용안내 | |||
| 유의사항 | |||
이용료안내
| 담당자에게 문의하시기 바랍니다. |
|---|
