임피던스
Multi Potentiostat/Galvanostat
| GBTP No. | - |
|---|---|
| NFEC등록번호 | NFEC-2014-12-194902 |
| I-tube등록번호 | 1405-D-0098 |
| 보유기관 | 포항공과대학교 |
| 연락처 | 054-279-5534 |
장비정보
| 모델명 | VSP300 | 제작사 | Bio-logic Science Instrument |
|---|---|---|---|
| 취득일자 | 2014-05-27 | 취득금액 | 31,206,572원 |
| 표준분류 | 전기/전자장비 > 측정시험장비 > 전압/전류/전력측정시험장비 | 활용용도 | 시험 |
| 장비위치 |
경상북도 포항시 남구 청암로 77 (지곡동) 산27 포항공과대학교 환경공학동 F4 405
 |
||
| 장비설명 |

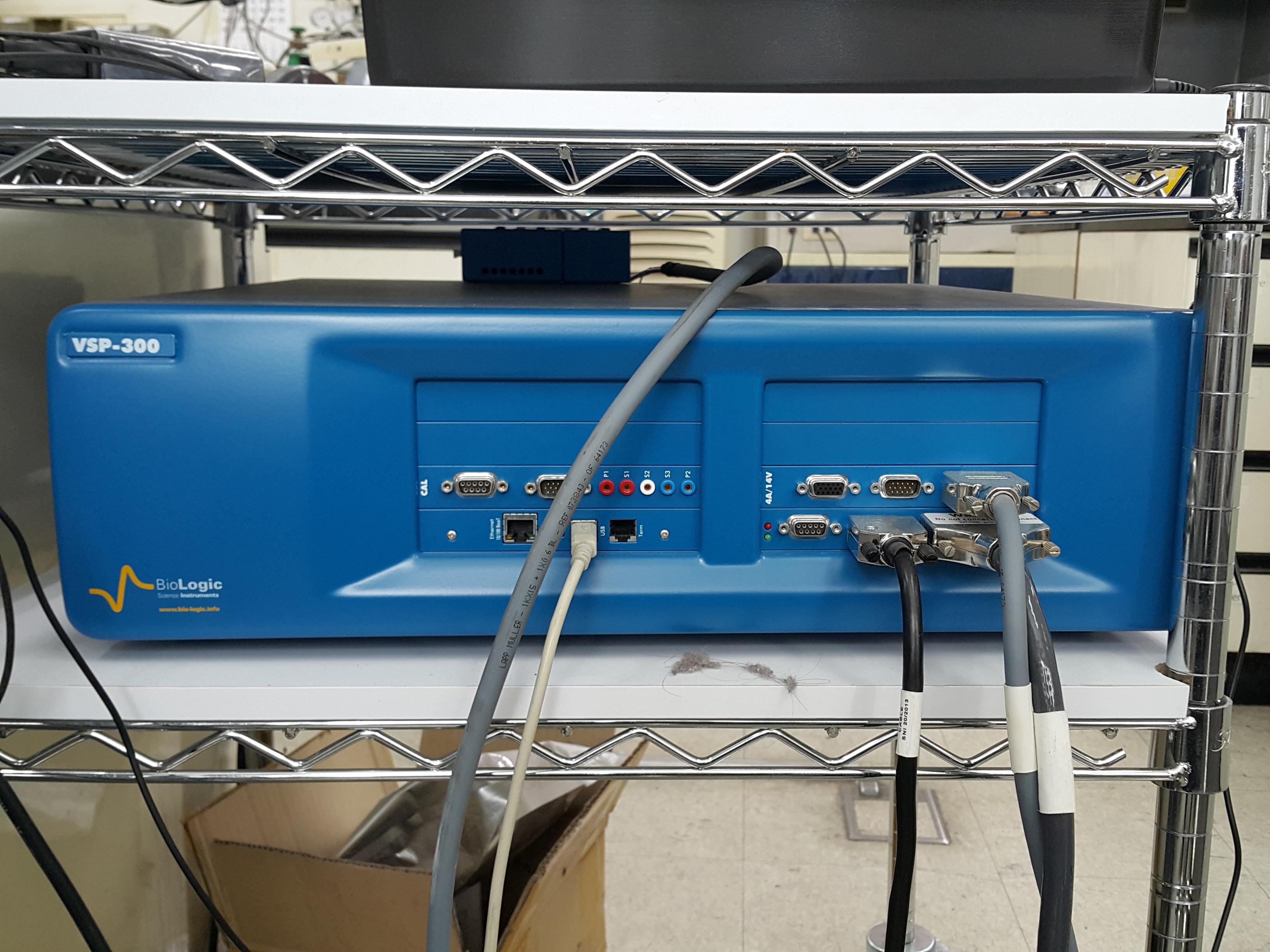

VSP-300 is a state-of-the-art research grade potentiostat / galvanostat / FRA with remarkable specifications.
It is the newest benchmark in the Bio-Logic product range. Designed upon Bio-Logic’s long history of flexible and modular potentiostat, the VSP-300 incorporates the latest technology to ensure excellent performance. The VSP-300 multichannel potentiostat / galvanostat is a versatile instrument offering 6 slots to set from 1 to 6 channel boards. Each channel board can accomodate an ultra low current cable and can be associated with one or several booster kits. Four booster kits are available: ±10 A/ [0;5] V, ±4 A/ [-3;14] V, ±2 A/ ±30 V and ±1 A/±48 V. Up to four similar boosters can be plugged in parallel in one VSP-300 chassis. The instrument can reach up to 40 A. Each channel board can be equipped with a linear scan generator. Not only a multichannel system, this instrument can be controlled independently by several users thanks to the LAN connection. |
||
| 구성 및 기능 |
Compliance: ±12 V up to ±49 V with booster
Control voltage: ±10 V up to ±48 V with booster Potential resolution: 1 μV EIS measurement: 10 μHz ？ 3 MHz (1%, 1°), 10 μHz ？ 7 MHz (3%, 3°) Current ranges: 1 A to 10 nA (standard) Maximum current: ±500 mA (standard) Up to 40 A with boosters in parallel Current resolution: 760 fA (standard) Low current: 6 ranges from 100 nA to 1 pA with resolution 76 aA Floating mode Analog filtering Calibration board Full stability control mode (9 bandwidths) |
||
| 사용/활용예 |
batteries/supercapacitors
fuel cells/photo voltaic cells fundamental electrochemistry corrosion sensors materials |
||
| 이용안내 | |||
| 유의사항 | |||
이용료안내
| 담당자에게 문의하시기 바랍니다. |
|---|
