유전자증폭기
Realtime PCR
| GBTP No. | - |
|---|---|
| NFEC등록번호 | NFEC-2018-08-245548 |
| I-tube등록번호 | - |
| 보유기관 | 농림축산검역본부 |
| 연락처 | 042-912-0492 |
장비정보

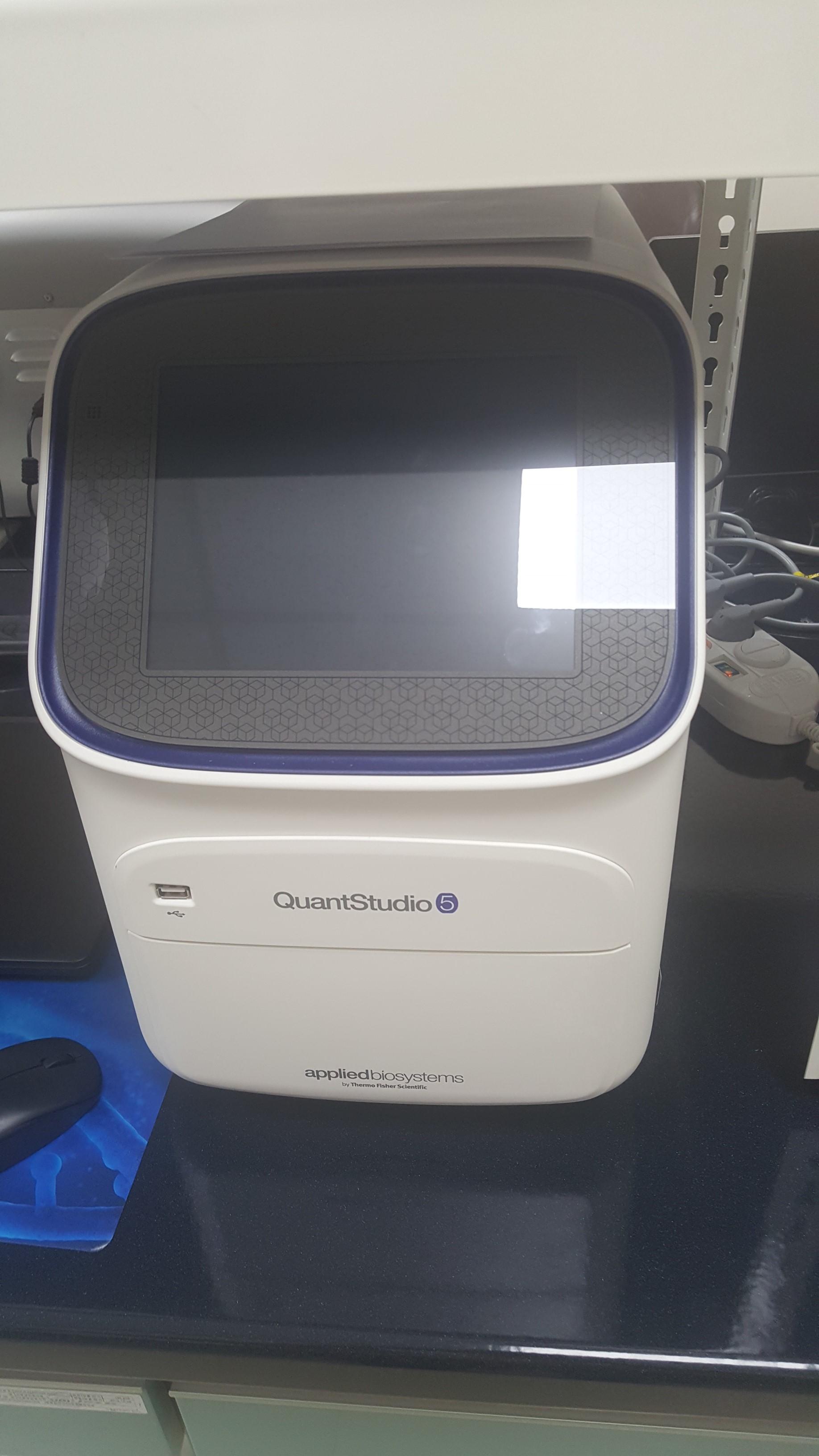

| 모델명 | QuantStudio 5 | 제작사 | Life Technologies |
|---|---|---|---|
| 취득일자 | 2018-06-05 | 취득금액 | 47,850,000원 |
| 표준분류 | 화합물전처리/분석장비 > 바이오제조/분석장비 > 유전자증폭장치 | 활용용도 | 시험 |
| 장비위치 |
경상북도 김천시 혁신8로 177 율곡동 960 농림축산검역본부 질병진단동 F2층 세균질병진단실
 |
||
| 장비설명 | The Applied Biosystems™ QuantStudio™ 5 Real-Time PCR System is designed for users who need superior performance, maximum dye versatility, and security options in a real-time PCR system that is affordable and easy to use. The optimized Design and Analysis software is ideal for both first-time and experienced users. When connected to the Thermo Fisher Cloud, the QuantStudio™ 5 system provides access to your data wherever and whenever you want. Using proven OptiFlex™ technology (featuring 6 decoupled channels and white LED) and featuring six independent Veriflex® temperature zones, the QuantStudio® 5 96-well system enables improved data accuracy and sensitivity for a broad range of genomic applications. The QuantStudio™ 5 system also offers the built-in software features of electronic record security and prevention of unauthorized instrument access to assist with 21 CFR Part 11 compliance. | ||
| 구성 및 기능 |
Dimensions
(WxDxH) 27 x 50 x 40 cm Quantity EA Applications Gene Expression (mRNA) Analysis, microRNA and Non-Coding RNA analysis, Genetic Variation, Mutation Detection, SNP Analysis, Genotyping/Allelic Discrimination Detection 5 coupled filters Wells 384-well Time < 30 minutes Excitation Source Bright white LED Temperature Uniformity 0.4 °C Heating Rate 6.5 °C/sec |
||
| 사용/활용예 | |||
| 이용안내 | |||
| 유의사항 | |||
이용료안내
| 담당자에게 문의하시기 바랍니다. |
|---|
